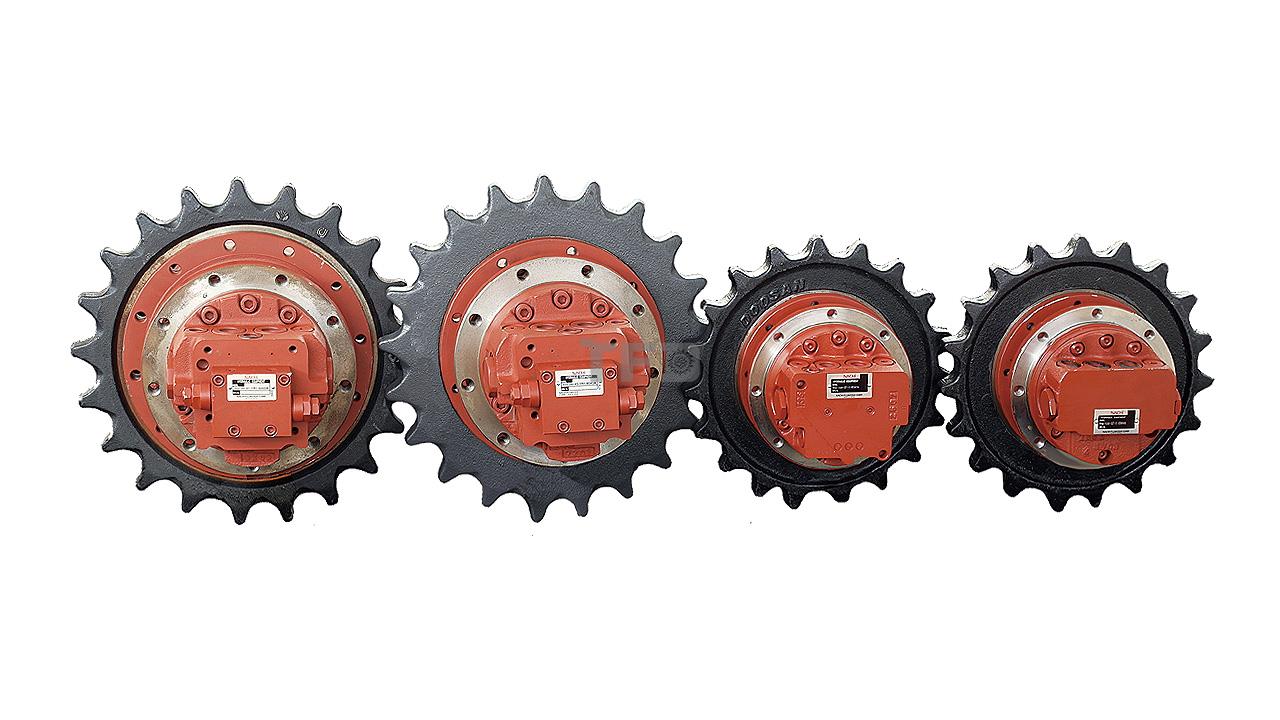

NACHI Final Drive

NACHI Final Drive

TRAVEL DEVICE - Specifications

MODEL Max. output torque
(N·m) 		Maxium final displacement
(cm³/rev) 		Max. pressure
(Mpa) 		Max. speed
(min-1) 		ton
PHV-1B 1510 458.3 24.5 80 ~1.5
PHV-2B 2420 670.8 24.5 75 ~2.0
PHV-3B 4114 1134.5 26.0 70 ~3.5
PHV-4B 8312 2131.6 26.5 65 ~6.0
PHV-5B 12941 2917.0 32.0 60 ~8.0
  1. MODEL
    PHV-1B
    Max. output torque(N·m)
    1510
    Maxium final displacement (cm³/rev)
    458.3
    Max. pressure(Mpa)
    24.5
    Max. speed(min-1)
    80
    ton
    ~1.5
  2. MODEL
    PHV-2B
    Max. output torque(N·m)
    2420
    Maxium final displacement (cm³/rev)
    670.8
    Max. pressure(Mpa)
    24.5
    Max. speed(min-1)
    75
    ton
    ~2.0
  3. MODEL
    PHV-3B
    Max. output torque(N·m)
    4114
    Maxium final displacement (cm³/rev)
    1134.5
    Max. pressure(Mpa)
    26.0
    Max. speed(min-1)
    70
    ton
    ~3.5
  4. MODEL
    PHV-4B
    Max. output torque(N·m)
    8312
    Maxium final displacement (cm³/rev)
    2131.6
    Max. pressure(Mpa)
    26.5
    Max. speed(min-1)
    65
    ton
    ~6.0
  5. MODEL
    PHV-5B
    Max. output torque(N·m)
    12941
    Maxium final displacement (cm³/rev)
    2917.0
    Max. pressure(Mpa)
    32.0
    Max. speed(min-1)
    60
    ton
    ~8.0

Please Request Drawing File to cho@tfdrive.com

NACHI Final Drive

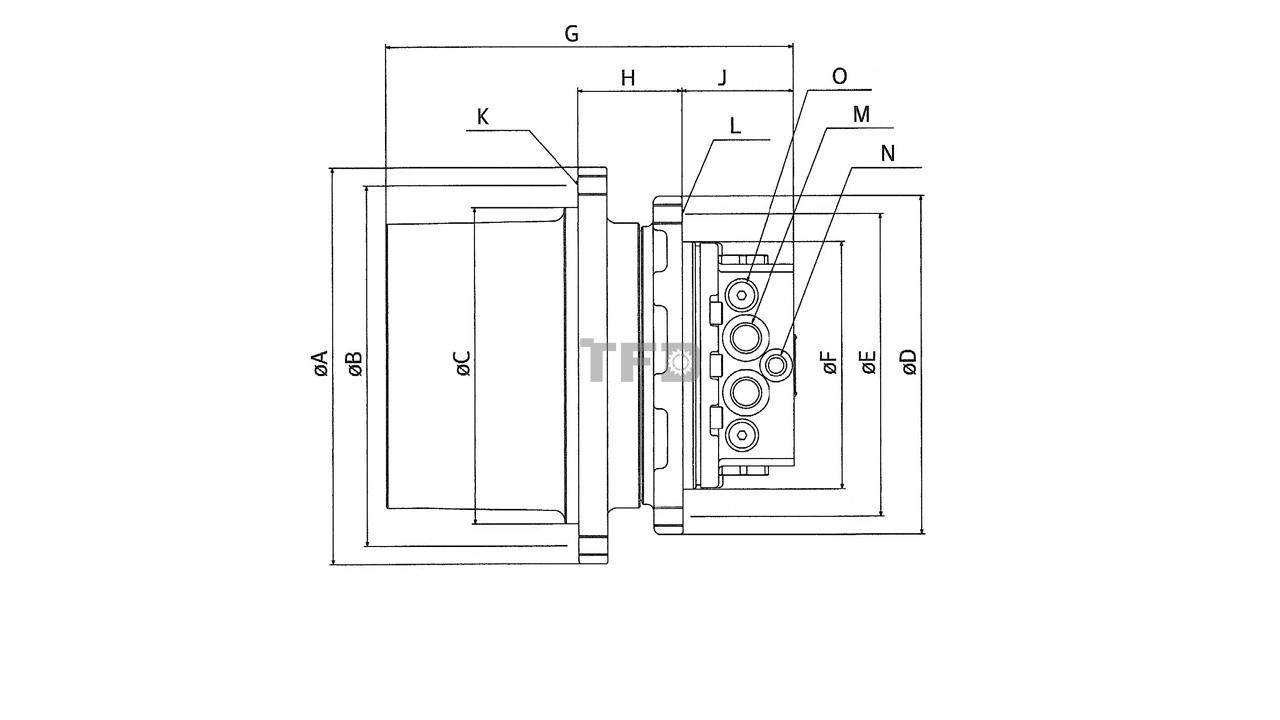

TRAVEL DEVICE - Dimensions

MODEL, A, B, C, D, E, F, G, H, J, J, K, L, M(A/B), N(PP), O(DR)
PHV-1B,∅175,∅155,∅140,∅175,∅155,∅140,(190),45,68,-,9-M10x1.5,8-M10x1.5,2-G3/8,G1/8,2-G1/4
PHV-2B,∅200,∅180,∅160,∅190,∅170,∅150,(222.5),40,83.5,-,9-M10x1.5,8-M10x1.5,2-G3/8,G1/8,2-G1/4
PHV-3B,∅235,∅212,∅190,∅214,∅192,∅165,(260.5),50,91.5,134.5,12-M12x1.75,12-M12x1.75,2-G1/2,G1/4,2-G1/4
PHV-4B,∅288,∅262,∅230,∅246,∅220,∅180,(296),75.5,81,119.5,12-M14x2,12-M14x2.0,2-G1/2,G1/4,2-G1/4
PHV-58,∅330,∅300,∅265,∅280,∅250,∅210,347.5,80,112,-,15-M14x2,14-M16x2,2-G1/2,G1/4,2-G1/4
