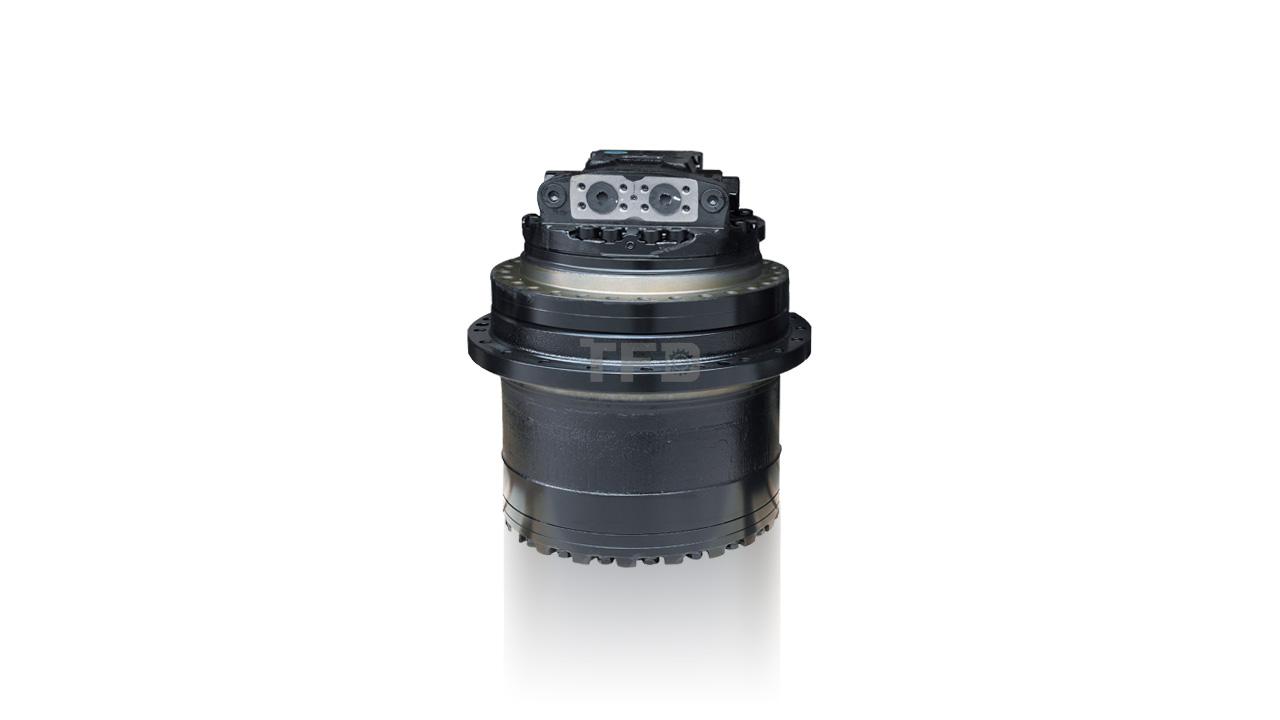

TFD Track Final Drive

Model, Travel Device, , , Hydraulic Motor
,"Gear ratio(I)","Max. Output Torque","Max. Output Speed","Min. Displacement"
,-,N·m,rpm,"cm3 /rev"
DM04VE,48.64,"4,340",70,17.3
DM07VE,58.4,"8,340",60,30.9
DM12VE,45.97,"12,260",60,31.5
DM25VE*,-,"24,640",-,-
DM40VE*,-,"45,600",-,-
DM80VE,-,"83,310",-,-
DM100VF,68.23,"102,400",40,221

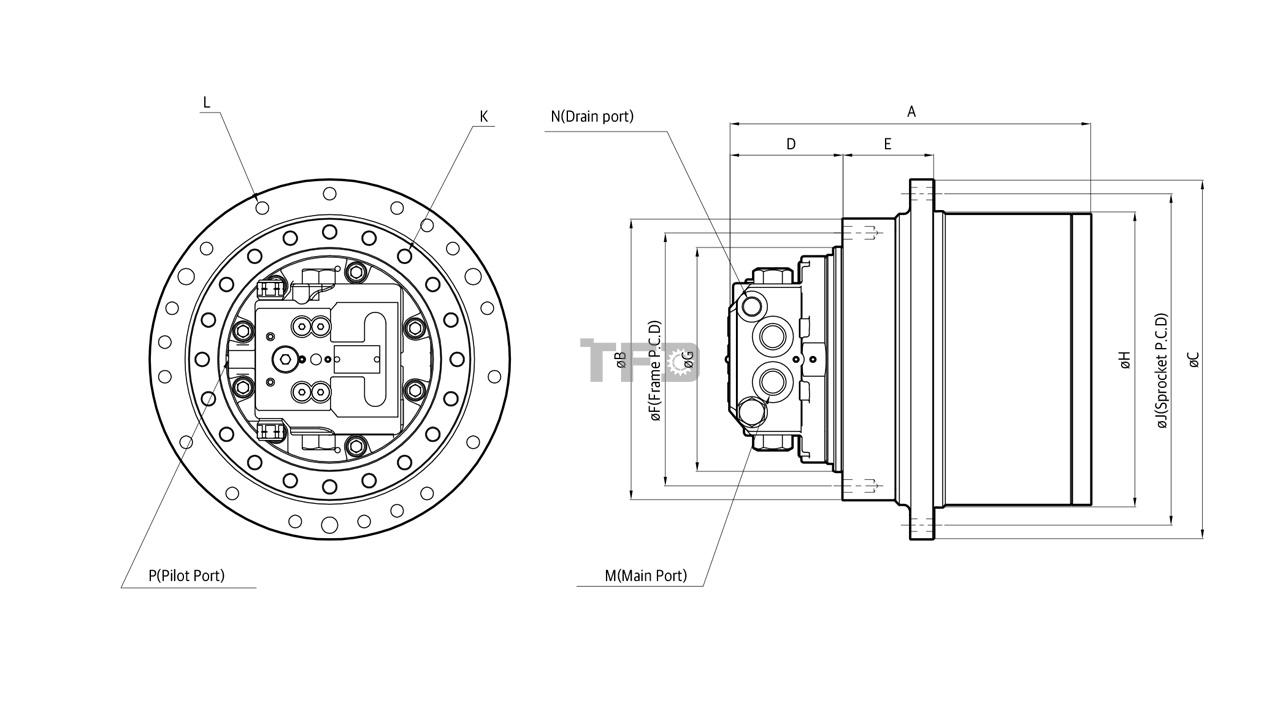

Model, A, B, C, D, E, F(Frame P.C.D), G, H, J(sPROCKET P.C.D), K(Frame), L(Sprocket), M (Main port), N (Drain port), P (Pilot port)
DM04VE,247.7,215,255,78,70,192,165,204,232,11-M12XP1.75,9-M12XP1.75,G1/2,G1/4,9/16-18UNF
DM07VE,315.5,246,288,102,75.5,220,180,230,262,14-M14XP2.0,12-M14XP2.0,G1/2,G1/4,G1/4
DM12VE,347.8,280,326,126,80,250,210,265,300,12-M16XP2.0,12-M14XP2.0,G1/2,G3/8,G1/4
DM25VE*,-,-,-,-,99.5,280,246,324,364,-,-,-,-,-
DM40VE*,-,-,-,-,98.5,340,300,402,440,-,-,-,-,-
DM80VE,-,-,-,-,112,425,380,490,535,-,-,-,-,-
DM100VF,668,500,586,207,130,460,420,510,550,26-M24XP3.0,36-M20XP2.5,"G1/4\"",G1/2,G1/4

Model, Travel Device, , , Hydraulic Motor, , , , , Application weight
,"Gear ratio(I)","Max. Output torque","Max. Output speed","Min. Displacement","Max. Displacement","Max. Speed","Rated pressure","Brake torque",
,-,N·m,rpm,"cm3 /rev","cm3 /rev",rpm,MPa,N·m,Ton
TM07VC,53.71,8340,60,34,55.8,3900,34.3,100,5~7
DM09VD,45.97,10790,60,34,55.8,3900,34.3,150,7~8
TM10VD,54.47,12250,70,34,55.8,3900,34.3,110,8~10
TM18VC,53,20600,60,54,86,3300,34.3,193,12~14
TM22VC,53.71,23340,60,54,86,3300,34.3,290,14~16
TM30VD,39.14,34200,56,110,175,2800,34.3,490,15~18
TM40VD,49.95,45610,60,119,175,2800,34.3,490,20~26
TM60VD,46.12,68640,52,221,280,2400,34.3,870,30~34
TM70VD,54.47,78400,45,221,280,2400,34.3,870,36~42

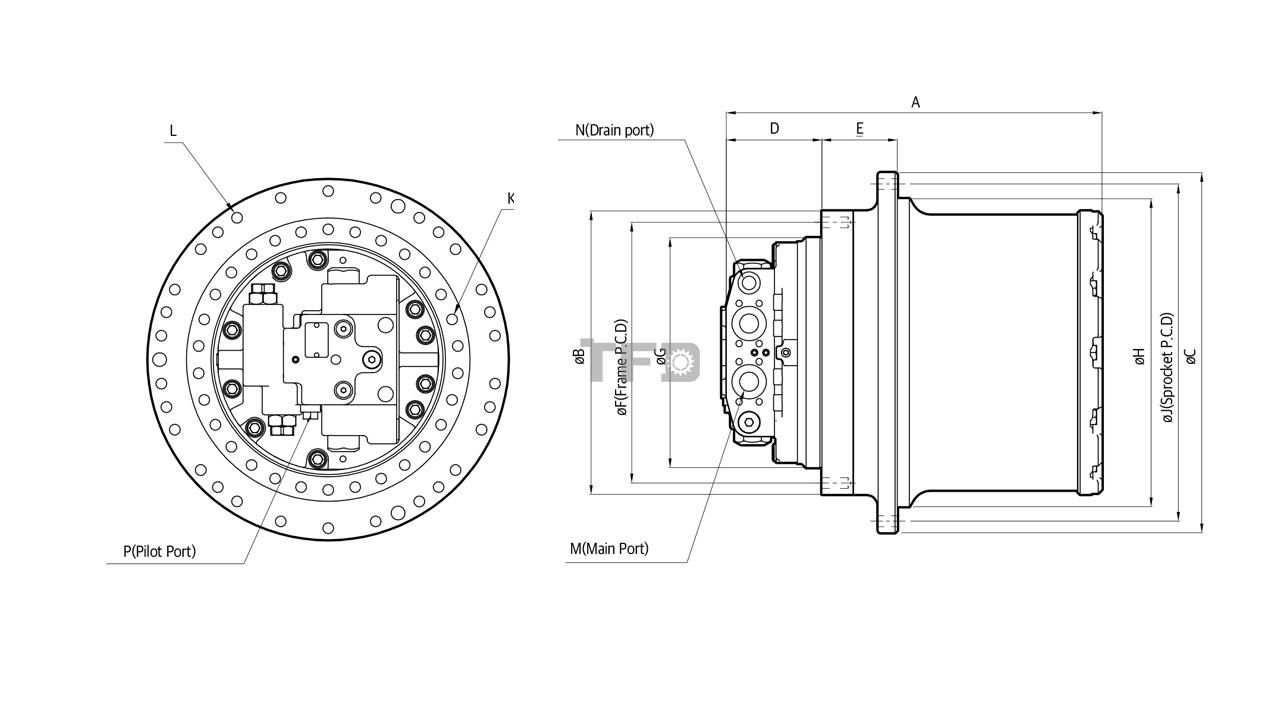

Model, A, B, C, D, E, F (Frame P.C.D), G, H, J (Sprocket P.C.D), K (Frame), L (Sprocket), M (Main port), N (Drain port), P (Pilot port)
TM07VC,348.5,268,306,126,68,244,210,250,282,12-M14XP2.0,12-M14XP2.0,G1/2,G3/8,G1/4
DM09VD,340,280,326,126,80,250,210,265,300,12-M16XP2.0,12-M14XP2.0,G1/2,G3/8,G1/4
TM10VD,356,278,328,123,80,250,210,265,300,12-M16XP2.0,15-M14XP2.0,G1/2,G3/8,G1/4
TM18VC,388.5,308,394,134,99.5,280,246,324,364,20-M16XP2.0,15-M16XP2.0,G3/4,G1/2,G1/4
TM22VC,396,308,394,124,99.5,280,246,324,364,20-M16XP2.0,18-M16XP2.0,G3/4,G1/2,G1/4
TM30VD,467.5,370,432,140.5,99.5,340,300,362,402,30-M16XP2.0,24-M16XP2.0,G3/4,G1/2,G1/4
TM40VD,502.5,370,470,138,98.5,340,300,402,440,30-M16XP2.0,30-M16XP2.0,"G1, SAE 1\"",G1/2,G1/4
TM60VD,553,460,525,166,112,425,380,450,490,30-M20XP2.5,28-M20XP2.5,"SAE 1\"",G1/2,G1/4
TM70VD,553,460,525,166,112,425,380,450,490,24-M24XP3.0,32-M20XP2.5,"SAE 1\"",G1/2,G1/4
