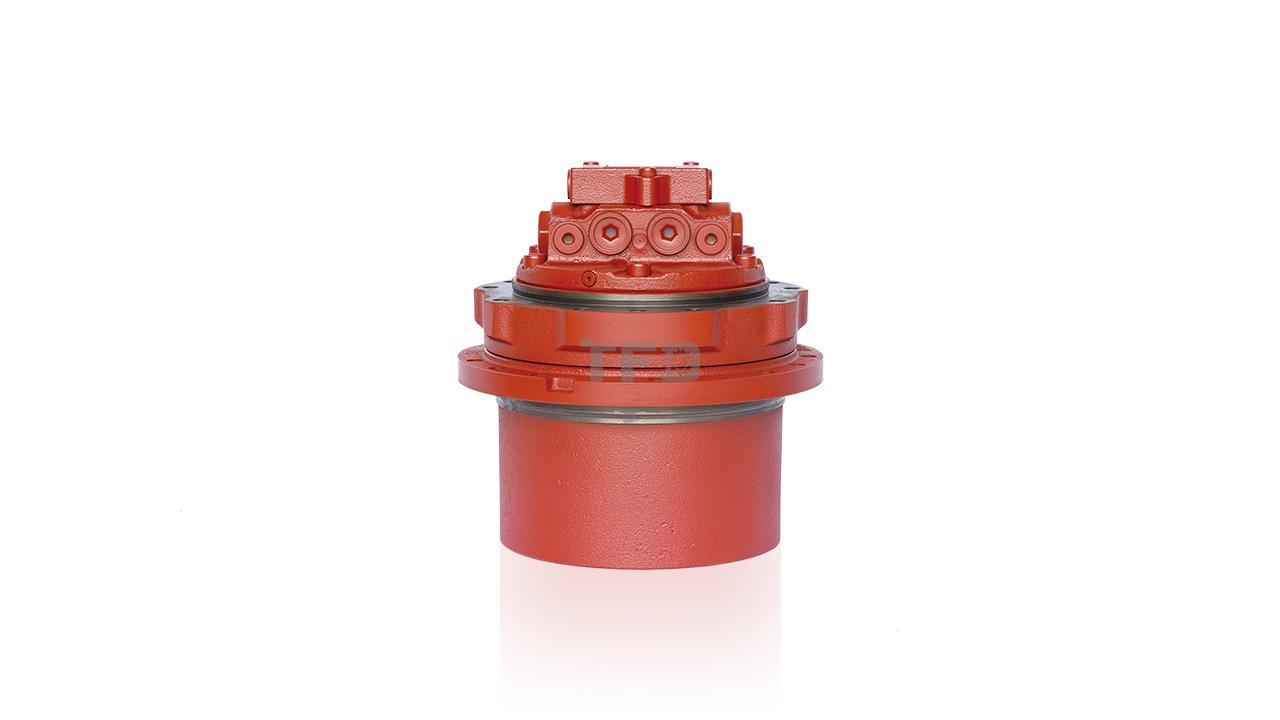

Kayaba Final Drive
| MODEL |
Max. output torque (kN·m) |
Max. working pressure (Mpa) |
Max. speed (rpm) |
Max. flow rate (L/min.) |
Typical applications |
|---|---|---|---|---|---|
| MAG-12V-120E | 1.18 | 20.6 | 80 | 20 | Mini excavator |
| MAG-18V-230F | 2.26 | 24.5 | 70 | 30 | Mini excavator |
| MAG-18V- 35OF | 3.43 | 27.5 | 60 | 40 | Mini excavator |
| MAG-26V-400F | 3.92 | 27.5 | 60 | 50 | Mini excavator |
| MAG-33V-650F | 6.37 | 27.5 | 60 | 60 | Mini excavator |
| MAG-50VP-800 | 7.84 | 29.4 | 55 | 80 | Midi excavator |
| MAG-85VP-1800E | 17.7 | 34.3 | 55 | 150 | Excavator |
| MAG-85VP-2400E | 23.5 | 34.3 | 50 | 150 | Excavator |
| MAG-170VP-3800G | 37.3 | 34.3 | 50 | 270 | Excavator |
| MAG-230VP-6000 | 58.8 | 34.3 | 50 | 320 | Excavator |
-
- MODEL
- MAG-12V-120E
- Max. output torque(kN·m)
- 1.18
- Max. working pressure(Mpa)
- 20.6
- Max. speed(rpm)
- 80
- Max. flow rate(L/min.)
- 20
- Typical applications
- Mini excavator
-
- MODEL
- MAG-18V-230F
- Max. output torque(kN·m)
- 2.26
- Max. working pressure(Mpa)
- 24.5
- Max. speed(rpm)
- 70
- Max. flow rate(L/min.)
- 30
- Typical applications
- Mini excavator
-
- MODEL
- MAG-18V- 35OF
- Max. output torque(kN·m)
- 3.43
- Max. working pressure(Mpa)
- 27.5
- Max. speed(rpm)
- 60
- Max. flow rate(L/min.)
- 40
- Typical applications
- Mini excavator
-
- MODEL
- MAG-26V-400F
- Max. output torque(kN·m)
- 3.92
- Max. working pressure(Mpa)
- 27.5
- Max. speed(rpm)
- 60
- Max. flow rate(L/min.)
- 50
- Typical applications
- Mini excavator
-
- MODEL
- MAG-33V-650F
- Max. output torque(kN·m)
- 6.37
- Max. working pressure(Mpa)
- 27.5
- Max. speed(rpm)
- 60
- Max. flow rate(L/min.)
- 60
- Typical applications
- Mini excavator
-
- MODEL
- MAG-50VP-800
- Max. output torque(kN·m)
- 7.84
- Max. working pressure(Mpa)
- 29.4
- Max. speed(rpm)
- 55
- Max. flow rate(L/min.)
- 80
- Typical applications
- Midi excavator
-
- MODEL
- MAG-85VP-1800E
- Max. output torque(kN·m)
- 17.7
- Max. working pressure(Mpa)
- 34.3
- Max. speed(rpm)
- 55
- Max. flow rate(L/min.)
- 150
- Typical applications
- Excavator
-
- MODEL
- MAG-85VP-2400E
- Max. output torque(kN·m)
- 23.5
- Max. working pressure(Mpa)
- 34.3
- Max. speed(rpm)
- 50
- Max. flow rate(L/min.)
- 150
- Typical applications
- Excavator
-
- MODEL
- MAG-170VP-3800G
- Max. output torque(kN·m)
- 37.3
- Max. working pressure(Mpa)
- 34.3
- Max. speed(rpm)
- 50
- Max. flow rate(L/min.)
- 270
- Typical applications
- Excavator
-
- MODEL
- MAG-230VP-6000
- Max. output torque(kN·m)
- 58.8
- Max. working pressure(Mpa)
- 34.3
- Max. speed(rpm)
- 50
- Max. flow rate(L/min.)
- 320
- Typical applications
- Excavator

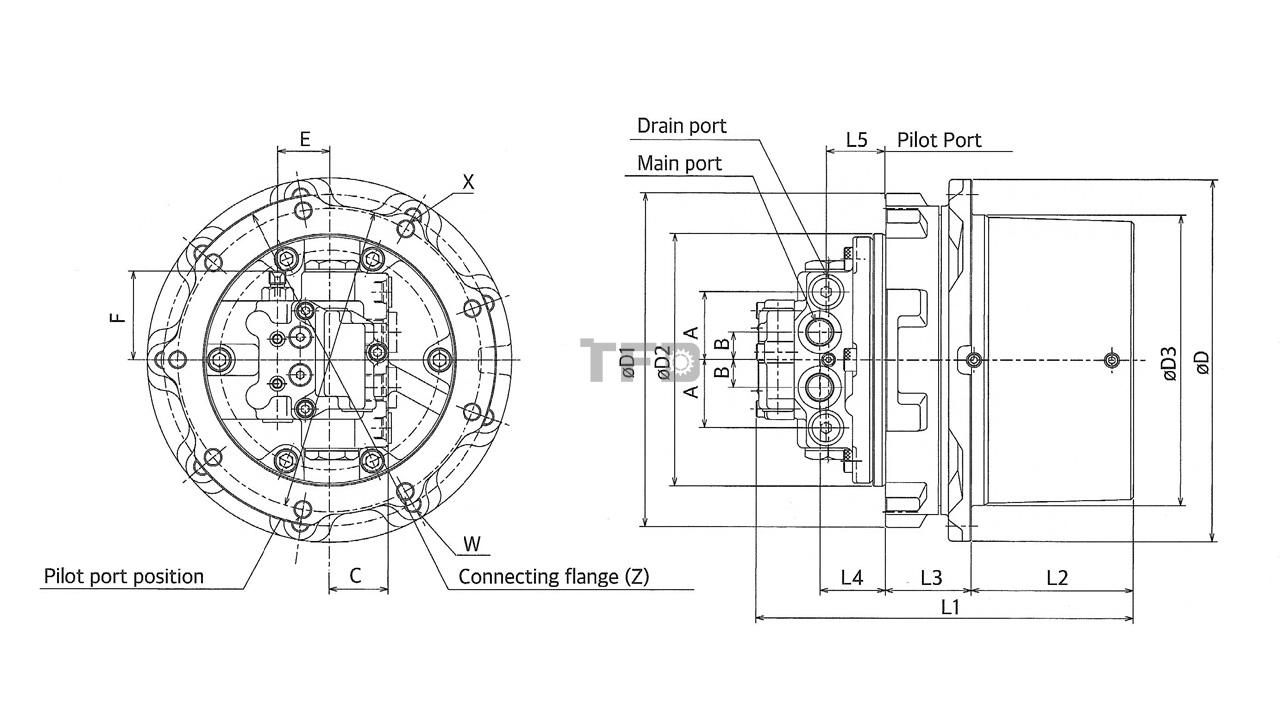

MODEL, ∅D1, ∅D2, ∅D3, ∅D4, L1, L2, L3, L4, L5, A, B, C, E, F, Main port, Drain port, Pilot port, w, X, ∅Y, ∅Z MAG-12V-120E,179,140,140,177,205,95,45,50,51,43,16.5,39,37,54.5,G1/4(PF1/4),G1/4(PF1/4),G1/4(PF1/4),8-M10,8-M10,155,155 MAG-18V-230F(W/A.C.V),190,150,160,200,250,104,40,59,61,46.5,19.5,40,37,58,G3/8(PF3/8),G1/4(PF1/4),G1/4(PF1/4),13-M10,12-M10,170,180 MAG-18V-350F(W/A.C.V),215,165,190,238,263,115,50,48,41.5,54,22,45,41,71,G1/2(PF1/2),G1/4(PF1/4),G1/4(PF1/4),11-M12,11-M12,192,215 MAG-26V-400F(W/A.C.V),215,165,204,255,288,120,70,46,41.5,54,22,45,41,71,G1/2(PF1/2),G3/8(PF3/8),G1/4(PF1/4),9-M12,11-M12,192,232 MAG-33V-650F(W/A.C.V),264,200,230,286,296,128,68,50,43.5,54,22,45,41,71,G1/2(PF1/2),G3/8(PF3/8),G1/4(PF1/4),12-M14,12-M14,240,262 MAG-50Vp-800(W/R.V),284,210,265,332,354,145,80,70,64,58,23,50,48,71,GU2(PF1/2),G3/8(PF3/8),G1/4(PF1/4),12-M16,12-M14,250,300 MAG-85VP-1800E,350,290,324,394,387,180,83,89,107,71,28,84,108,-,G3/4(PF3/4),G1/2(PF1/2),G1/4(PFV4),16-M16,15-M15,320,364 MAG-85VP-2400E,400,330,365,437,713,200,100,75,93,71,28,84,108,-,G3/4(PF3/4),G1/2(PF1/2),G1/4(PF1/4),16-M16,22-M16,370,405 MAG-170VP-3800G,370,300,402,469,526,254,99,128,131,-,54,95,110,-,G1(PF1),G1/2(PF1/2),G1/4(PF1/4),30-M16,22-M16,340,440 MAG-230VP-6000,462,380,450,530,613,313,112,157,171,87,37,89,113,-,G1(PF1),G1/2(PF1/2),G1/4(PF1/4),20-M24,24-M20,425,495
