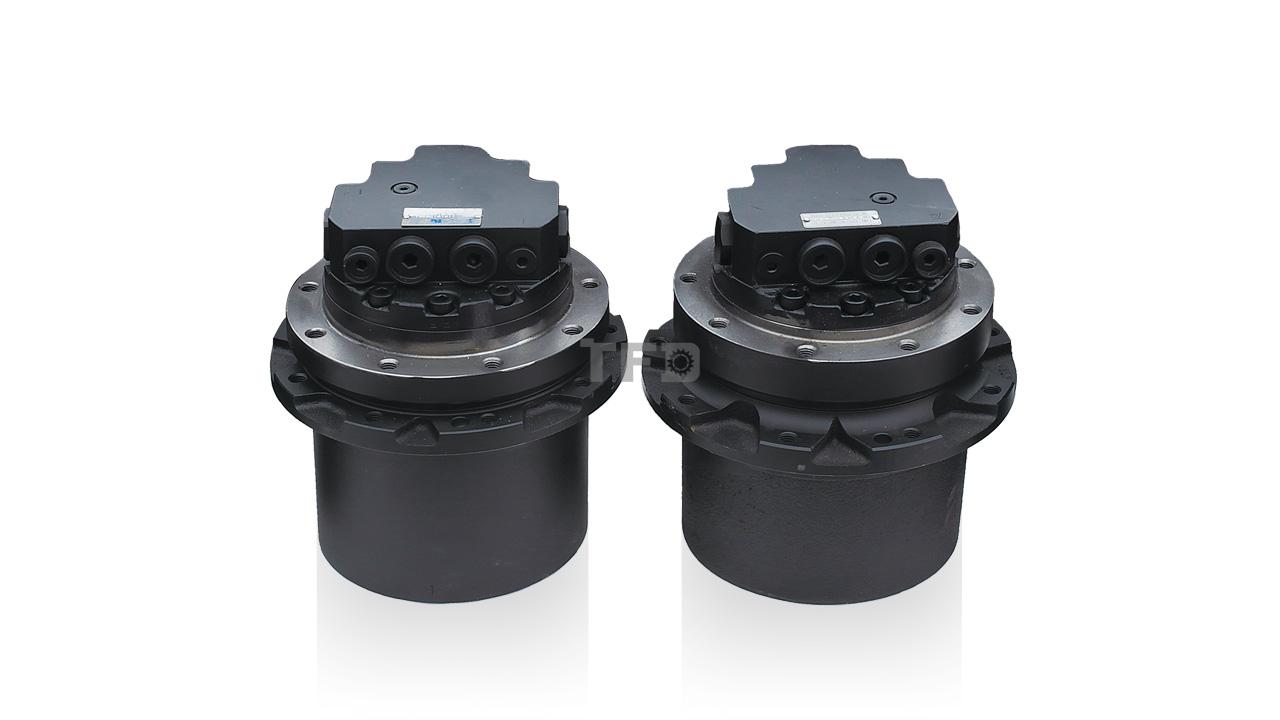

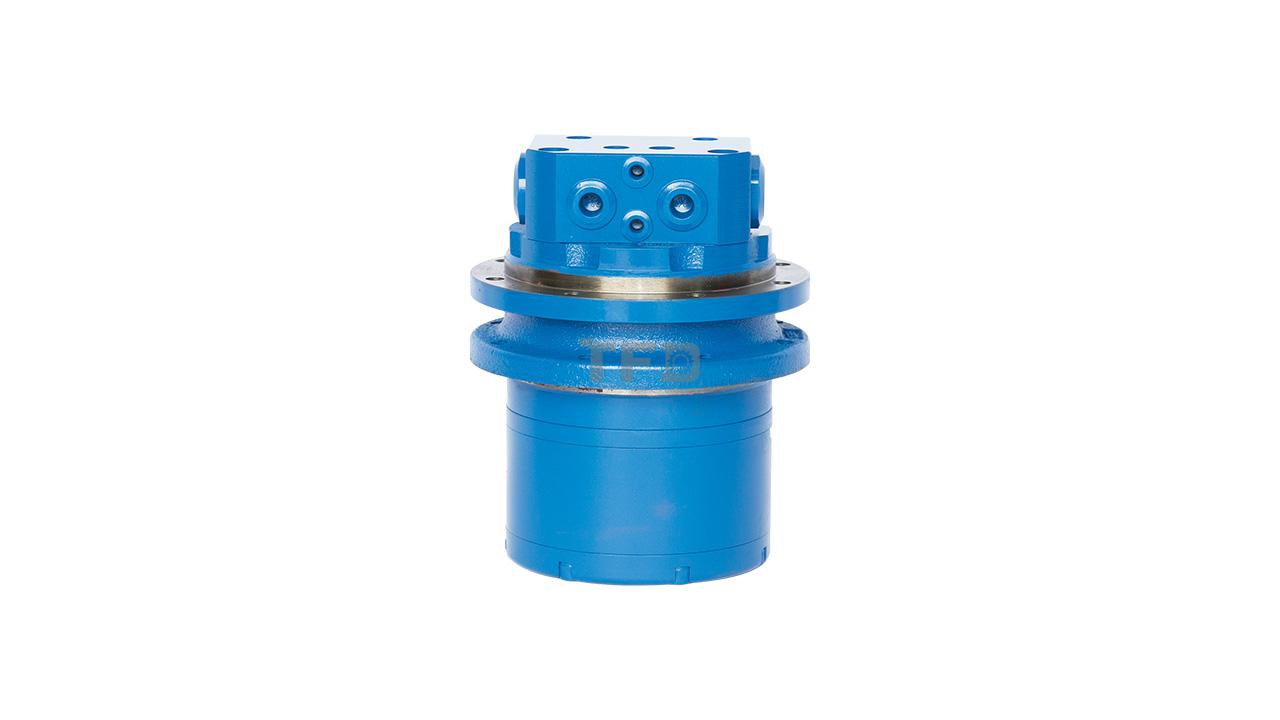

TFD Track Final Drive

MODEL, Max. output torque (Reducer), , Motor displace-ment, , Gear ratio, Max. speed (Motor), , Max. flow, Normal pressure, Peak pressure, Mechanical brake torque, , Automatic shift pressure, Relief vaive, Mass, Typical vehicle application
,"Low speed ","High speed","Low speed","High speed",,"Low speed","High speed",,,,Reckscer,Motor,,,,
,N·m,,cc/r,,,rpm,,I/min,bar,bar,N·m,,bar,,kg,Ton
016¹,1666,⨉,16.1,⨉,31,1056,⨉,23,214,255,547,18,⨉,⨉,25,1.5
016²,3018,1915,16.4,10.4,53.7,2134,3365,35,220,260,2631,49,⨉,⨉,38,3.5
016³,2785,1936,16.4,11.4,42.7,2134,3070,35,250,280,1591,37,180,⨉,30,2~3
018,3317,1864,18,10.1,53.7,1944,3465,35,220,260,2631,49,⨉,⨉,38,3.5
021,3696,1969,21,11.2,53.7,1667,3125,35,220,260,2637,49,⨉,▲,38,3.5
023,4724,2955,23.5,14.7,53.7,1489,2381,35,240,285,2631,49,⨉,▲,38,3.5
041,10336,6560,41.1,26.1,53.7,1800,2835,74,300,355,8041,150,243,●,87,7.5
044,6831,3528,43.7,22.7,45.5,1259,2423,55,220,260,3746,82,⨉,●,79.5,5
,8056,4185,43.7,22.7,53.7,1259,2423,55,280,300,4421,82,⨉,●,79.5,5~6
047,11711,6909,46.6,275,53.7,1622,2744,76,300,360,3869,82,⨉,●,87,7
053,11720,6909,53.2,31.4,47,1597,2710,85,300,360,3869,82,⨉,●,89,7-8
067,18707,11452,67.3,41.2,54,1664,2718,112,330,395,10584,196,290,●,140,11
076,23549,13775,76.62,44.8,54,1612,2757,124,365,430,10425,193,290,●,135,14
976“,23549,11671,76.62,37.9,54,1631,3294,125,365,430,10425,193,290,●,135,14
118,32535,19852,118,72,50.5,1864,3056,220,350,420,21648,480,260,●,300,16
147,41548,26940,146.5,95,50.5,1707,2632,250,360,430,24250,480,260,●,300,20~22
"1 호",61671,35257,154.8,88.5,73,1718,3005,275,350,420,28607,392,270,●,404,29~32
168,46433,28263,168.4,102.5,50.5,1469,2413,248,350,420,24250,480,260,●,310,25
173,65010,37976,173,101,73,1561,2673,270,330,395,28607,392,270,●,404,33
185,72892,44972,185,114.1,70.2,1557,2523,288,360,430,30537,435,⨉,●,425,36~38
274,94438,59016,274.6,171.6,63,1383,2214,380,350,420,63592,1009,⨉,●,610,45~50

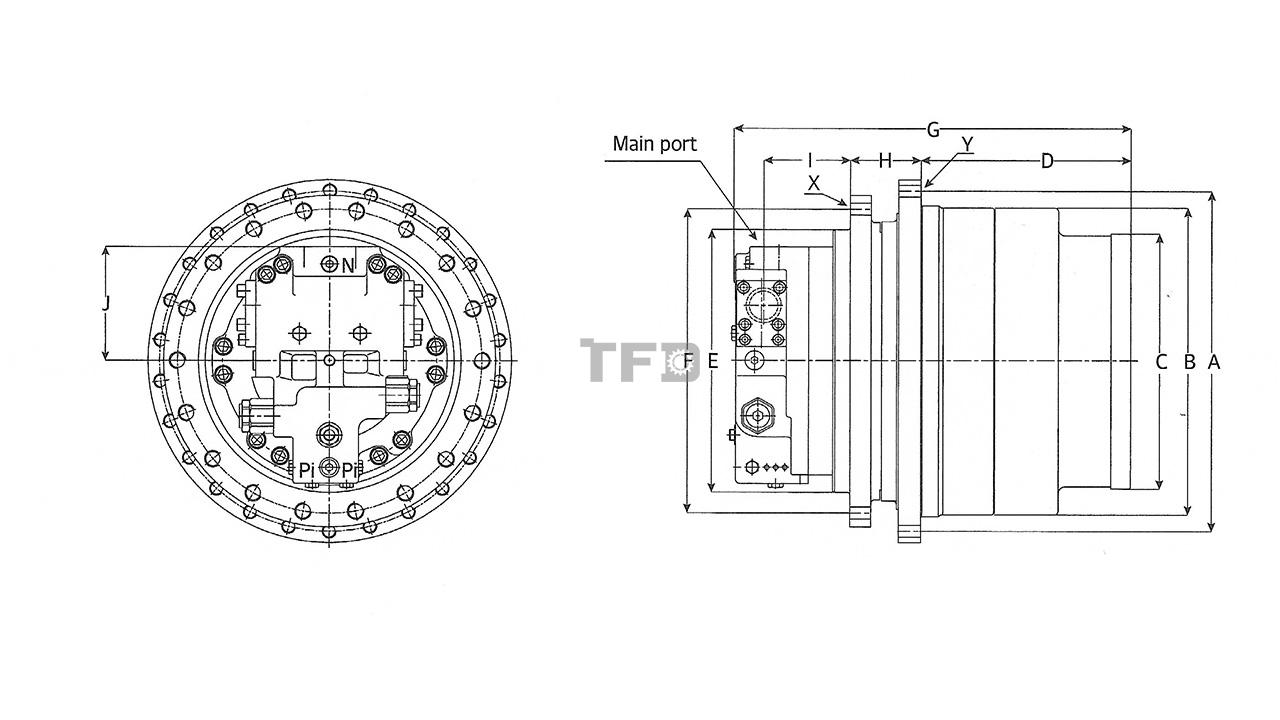

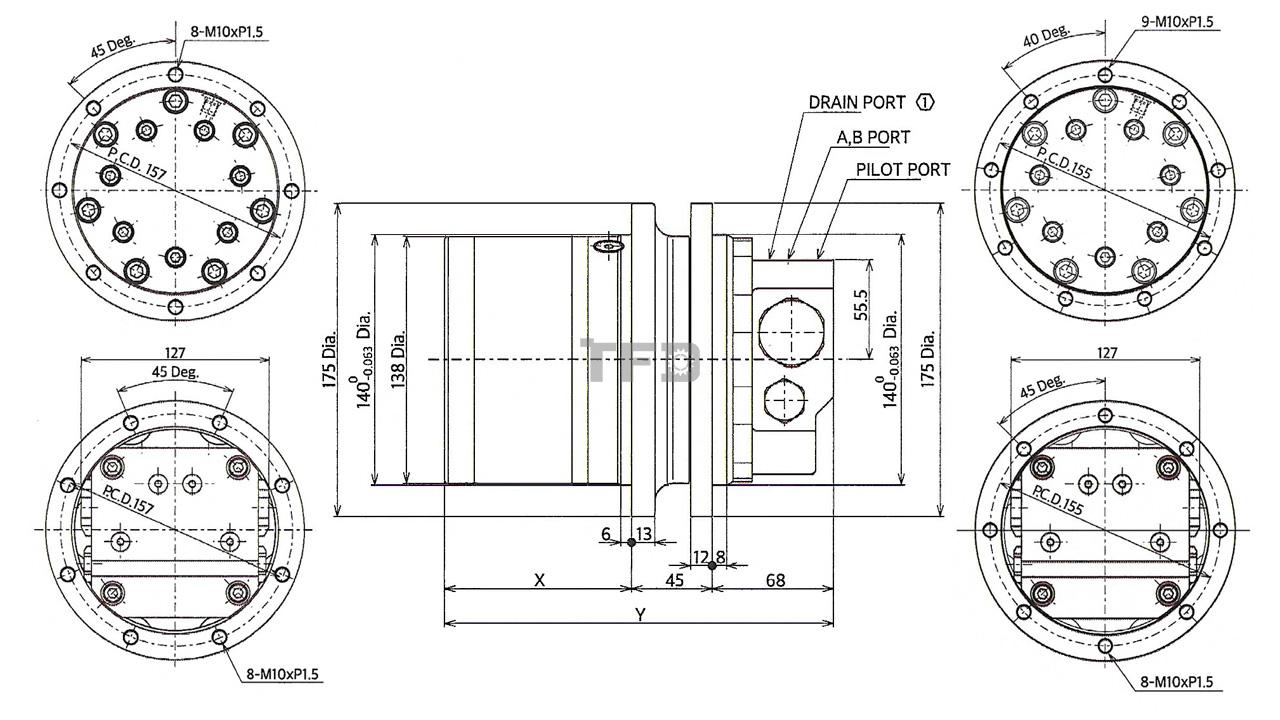

MODEL, ∅A, ∅B, ∅C, D, ∅E, ∅F, G, H, 1, J, X, Y, Main Port
01612,180,160,"I 154",99.5,150,170,214,40,58.5,39,10-M10,9-M10,"2-G3/8 (2-PF3/8)"
0163,200,160,159,114.5,150,190,251.5,40,77,,8-M10,8-M10,2-G3/8(2-PF3/8)
018,215,190,188,132,165,192,257.3,50,47.5,,9-M12,9-M12,2-G1/2(2-PF1/2)
021,232,204,196,132,165,192,257.5,50,55.5,51,9-M12,10-M12,"2-G1/2 (2-PF1/2)"
023,232,204,196,132,165,192,257.5,50,55.5,51,9-M12,10-M12,"2-G1/2 (2-PF1/2)"
041,300,265,248,150.5,210,250,347,80,74,76.5,12-M16,12-M14,"2-G1/2 (2-PF1/2)"
044,282,250,244,155,210,244,342,68,76,74,12-M14,12-M14,"2-G1/2 (2-PF1/2)"
047,300,265,244,148.5,210,250,351.5,80,74,74,12-M16,12-M14,"2-G1/2 (2-PF1/2)"
053,300,265,261,149,210,250,344,80,72,76,12-M16,12-M14,"2-G1/2 (2-PF1/2)"
067,364,324,320,204,225,320,400,83,88.5,74,16-M16,15-M16,"2-1-1/16-12 UNF-2B"
076,364,324,320,193,246,280,396.5,98.5,81,74,20-M16,21-M16,"2-G3/4 (2-PF3/4)"
118,440,402,400,250,300,340,515.5,98.5,123,90,30-M16,12-M12,"Φ25 Flange, 2-G1(2-PF1)"
147,440,402,400,250,300,340,515.5,98.5,123,90,30-M16,30-M16,"Φ25 Flange, 2-G1(2-PF1)"
168,440,402,400,250,300,340,515.5,98.5,123,90,30-M16,30-M16,"Φ25 Flange, 2-G (2-PF1)"
155,492,450,369,305,380,440,572.5,102.5,103,165,18-M24,26-M20,"025 Flange"
173,492,450,369,305,380,440,572.5,102.5,103,165,18-M24,26-M20,"2-G1 (2-PF1)"
185,490,450,369,295.5,380,425,572.5,112,103,165,26-M20,24-M20,"Φ25 Flange"
274,605,556,472,326.5,420,460,651.5,130,134,156.5,24-M20,24-M22,"Φ32 Flange"

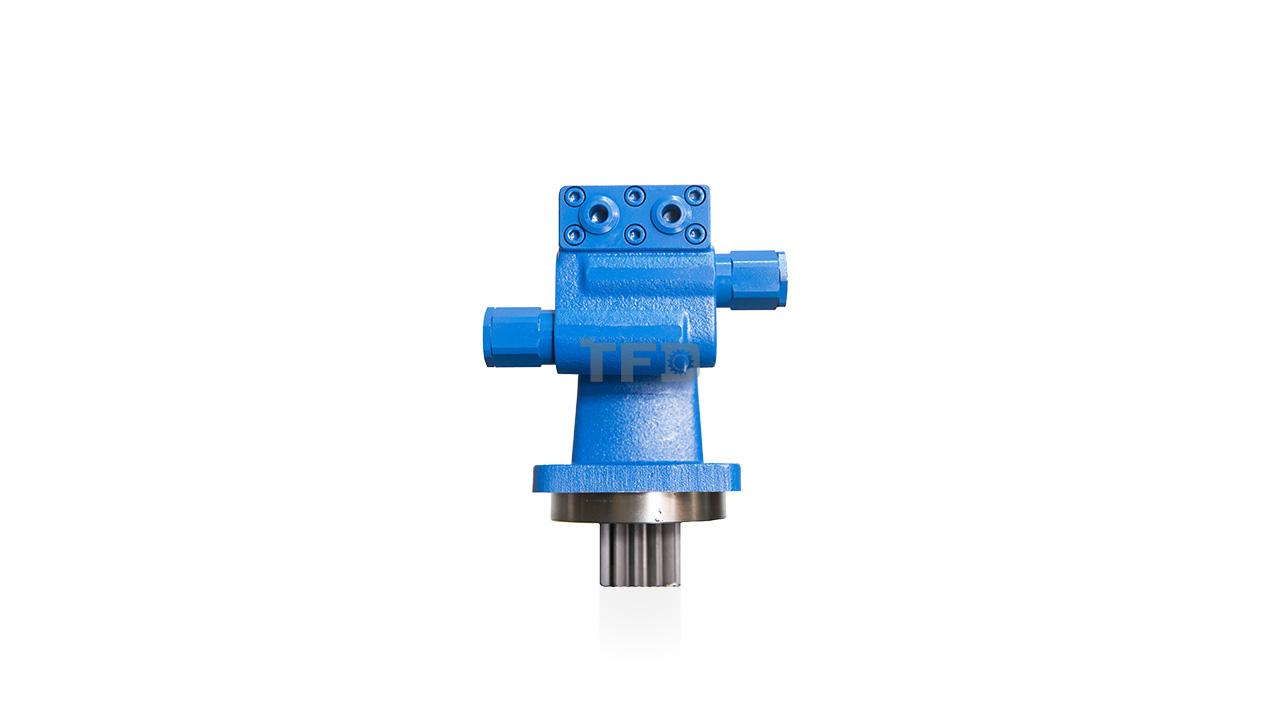

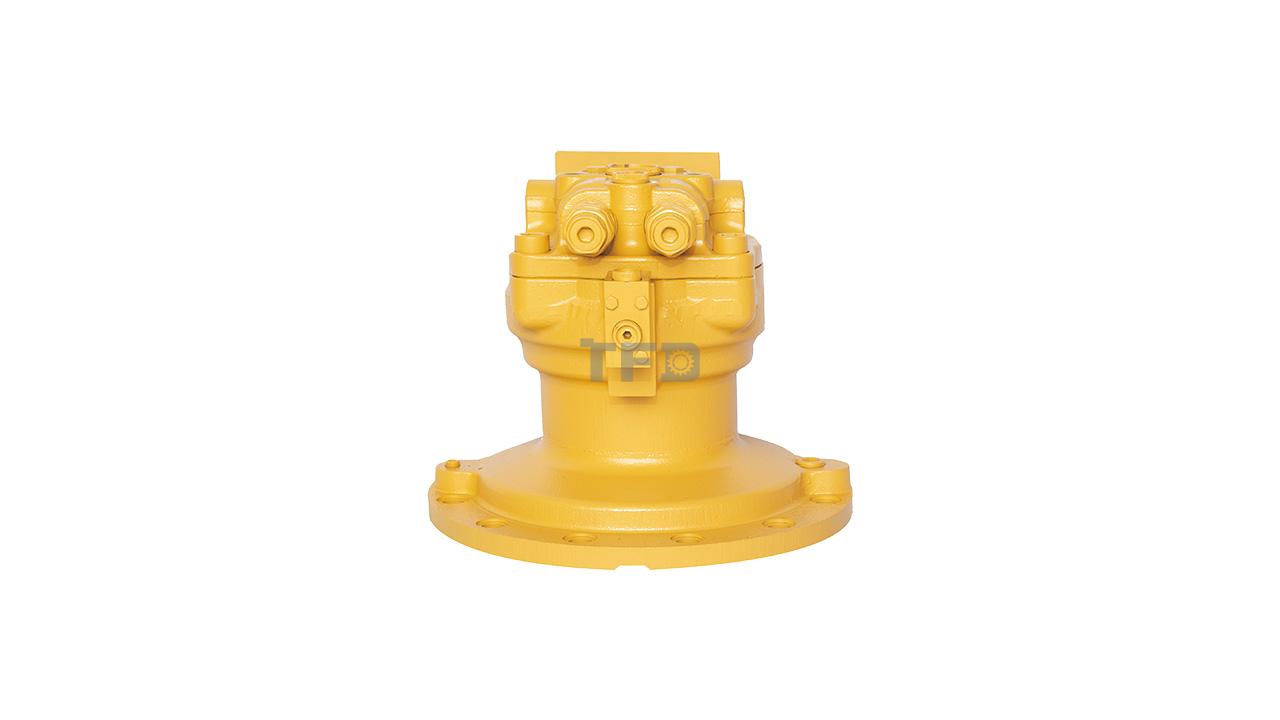

MODEL, Motor Displacement, Max. Output Torque, Gear Ratio, Reducer Max. speed, Max. Flow, Normal Pressure*, Peak pressure, Mechanical Brake Torque(Motor), Time Delay Valve, Anti-reverse vaive, Output Pinion, , Mass, Typical vehicle application
,cc/rev,N.m,,rpm,l/min,bar,oar,,,,Module,Number,kg,Ton
029,29,1929,19.5,63,35.6,230,276,137,●,⨉,7,13,75,5~6
030,30,2118,19.5,60,35.6,230,276,137,●,⨉,7,13,75,5~6
033,33,2277,19.5,63,40,230,276,137,●,⨉,7,13,75,5~6
036,36,2569,19.5,51,36,230,276,137,●,⨉,7,13,75,5~6
043,43,2873,19.5,72,60,230,276,137,●,⨉,8,12,75,5~7
047,47,3182,19.5,74,68,230,276,137,●,●,8,12,77,7~8
048,48,3182,19.5,74,68,230,276,137,●,●,8,12,77,7~8
053,53,3034,19.5,78,81,230,276,137,●,⨉,8,12,77,7~8
064,64,4565,19.0,107,130,280,336,245,●,●,10,12,112,12~14
0b8,68,4850,19.0,101,130,280,336,245,●,●,10,12,112,12~14
0oC,80,5727,19.0,95,140,280,336,300,●,●,10,12,116,14
118,118,8122,17.6,82,170,280,336,579,●,●,12,13,237,17〜18
151,151,9977,17.6,84,225,280,336,579,●,●,12,13,237,"22, 45"
169,169,17787,23.6,62,250,320,385,686,●,●,14,15,240,29
195,195,18331,22.0,58,250,320,385,864,●,●,14,14,400,30~33
233,233,23166,22.0,56,288,320,385,1049,●,●,14,15,440,33~36
250,250,24858,22.0,52,288,320,385、,1049,●,●,14,15,440,"33~36,120"

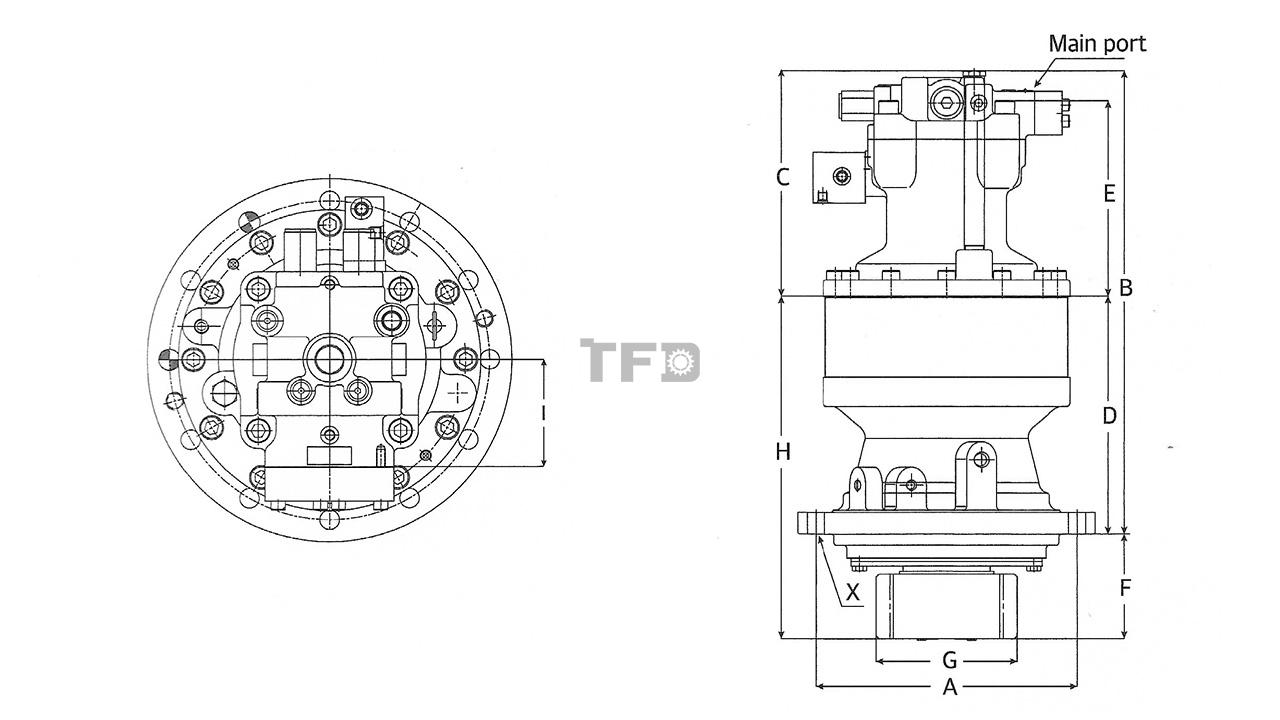

MODEL, ΦA, B, C, D, E, F, ΦG, H, I, X, Main Port
029,275,405,210,194,184,98,112,292,72,7-Φ17,"2-G1/2 (2-PF1/2)"
030,275,405,210,194,184,98,112,292,72,7-Φ17,"2-G1/2 (2-PF1/2)"
033,275,405,210,194,184,98,112,292,72,7-Φ17,"2-G1/2 (2-PF1/2)"
036,275,402,208,194,178,98,112,292,72,7-Φ17,"2-G1/2 (2-PF1/2)"
043,275,399,205,194,178,106,120.8,300,72,7-Φ17,"2-G1/2 (2-PF1/2)"
047,275,410.5,216.5,194,189.5,105,120.8,299,72,7-Φ17,"2-G1/2 (2-PF1/2)"
048,275,442.5,249.5,193,189.5,127,109.4,320,75,7-Φ18,"2-G1/2 (2-PF1/2)"
053,275,410.5,216.5,199,189.5,106.2,1178,305.2,72,7-Φ17,"2-G1/2 (2-PF1/2)"
064,290,468,234,234,196,113,143,347,97,9-Φ18,"Φ13 Flange"
068,290,468,234,234,196,113,143,347,97,9-Φ18,"Φ13 Flange"
080,290,496,248,248,208,115,143,363,97,9-Φ18,"Φ13 Flange"
118,360,632,298,334,248,143,194,477,121,11-Φ22,"Φ20 Flange"
151,360,632,298,334,248,143,194,477,121,11-Φ22,"Φ20 Flange"
169,520,698,302,396,257,179,238,575,120,15-Φ22,"Φ20 Flange"
195,430,737,342,395,258,184,232,579,112,12-Φ26,"Φ25 Flange"
233,430,804,393,411,345,205,238,616,148,12-Φ26,"Φ26 Flange"
250,430,804,393,411,345,205,238,616,148,12-Φ26,"Φ26 Flange"

MODEL, Ton, Motor displacement Fixed(Variable), Max output torque, Max pressure, Max flow, Max case pressure, 2 speed pilot pressure, Mass weight
,,cm3/rev,N·m,MPa,L/min,MPa,MPa,Kg
K-D18,0.5,,,,,,,
TRBF31,0.8~1.0,310(155),1020,20.6,20,0.5,1.4,22
TRBV31,,,,,,2,,
TRBF35,1.0~1.5,350(175),1148,20.6,20,2,1.4,22.5
TRBV35,,,,,,0.5,,
TRBF39,15,390(195),1279,20.6,20,2,1.4,23
TRBV39,,,,,,0.5,,
TRBF44,1.5,440(220),1443,20.6,20,2,1.4,23.5
TRBV44,,,,,,0.5,,
TRBF49,1.5~1.7,490(245),1607,20.6,20,2,1.4,24
TRBV49,,,,,,0.5,,

MODEL, Ton, Motor displacement, Max output Torque, Max pressure, Max speed, Mass
,,cm3/rev,N·m,MPa,rpm,kg
SC-16,0.5,165,180,6.8,80,7.4
SC-19,0.5~0.7,186,203,6.8,80,7.6
SC-22,0.7,224,210,5.9,80,7.9

MODEL, Ton, Motor displacement, Max output Torque, Max pressure, Max speed, Mechanical brake torque, Mass
,,cm3/rev,N·m,MPa,rpm,N·m,kg
2P*16,0.7~1.5,158,369,14.7,80,"441 (Min. release pressure: 2MPa, Max release pressure: 4.9MPa)",21
2P*20,0.7~1.5,195,411,13.2,80,,21.5
2P*25,1.5~2.0,244,418,10.8,80,,22

MODEL, Ton, Motor displacement, Max output Torque, Max pressure, Max speed, Mechanical brake torque, Mass
,,cm3/rev,N·m,MPa,rpm,N·m,kg
4P*25,2.0~2.5,246,691,17.7,80,"785
Min. release pressure: 2MPa,
Max release pressure: 3.9MPa",28.5
4P*31,2.5~3.0,311,850,17.2,80,,29.0
4P*39,2.5~3.0,393,859,13.7,80,,30.0

MODEL, Ton, Motor displacement, Max output Torque, Max pressure, Max speed, Mechanical brake torque, Mass
,,cm3/rev,N·m,MPa,rpm,N·m,kg
6P*35,3.0~3.5,351,1096,19.6,80,"1128
Min. rlease pressure: 2MPa
Max. release pressure: 3.9MPa",32
6P*39,3.0~3.5,390,1127,18.1,80,,34
6P*44,3.5,440,1134,16.2,80,,3
6P*49,3.5,490,1148,14.7,80,,36
